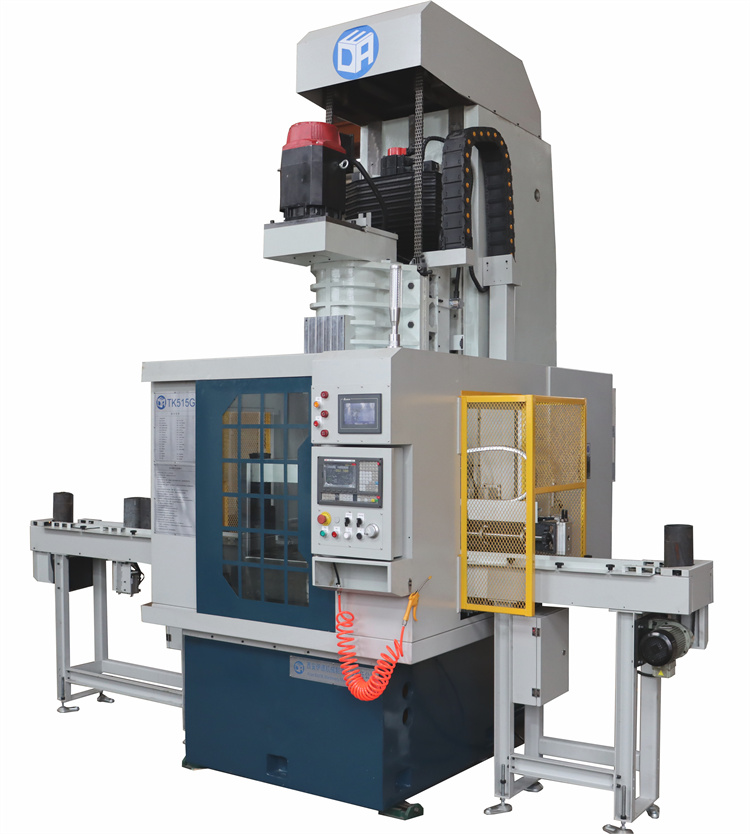

TK515/TK520/TK525/TK530數控高速鏜床
■機床主要部件均采用高強度鑄鐵樹脂砂鑄造,并采用多次時效處理,機床剛性好,精度穩定。
■機床主軸采用高剛性的兩點支撐主軸結構,剛性高,保證加工剛性足,加工精度穩定。
■雙軸控制采用獨立系統,獨立操作面板,可同時完成不同品種工件的加工。
■機床鏜刀桿及刀夾可根據客戶工件要求訂做。刀夾方式靈活多樣,單刀、多刀均可使用。
■具有主軸定向準停功能,方便單鏜刀退刀。
■三色巡視燈便于操作人員觀察機床狀態。
■ Machine main components are made of high-strength cast iron casting resin sand, and several times with aging treatment, machine tool rigidity, accuracy and stability.
■ Spindle supported at two points with high rigidity spindle structure, rigidity high enough to ensure that the processing of rigid, precision and stability.
■ Independent axis control system, an independent panel, to be completed at the same time the processing of different varieties of the workpiece.
■ Machine boring bar toolholder and the workpiece can be customized according to customer requirements. Toolholder flexible and diverse, single-pole, multi-tool can be used.
■ Exact stop having spindle orientation function, convenient single boring tool retract.
■ Tricolor patrol lights to facilitate the operator to observe the machine state.
■一個底座上布置獨立的雙立柱、雙主軸結構,布局合理緊湊,可同時加工兩個或兩種零件,加工效率高,占地面積小,又能減少操作工。
■ One base arranged separate double column, double spindle structure, reasonable layout and compact, it can be processed in two or two parts simultaneously, high efficiency, small footprint, and reducing operator.
■機床采用氣動下壓式夾具、自動定心裝置、前后送料方式,送料滑軌采用直線導軌,液壓油缸推動。可根據客戶要求訂做。
■ Pneumatic pressure clamp, automatic centering device, before and after the feeding mode, feeding linear guide rail, hydraulic cylinders push. It can be customized according to customer requirements.
■機床配置鏈板式排屑器、集屑小車,方便加工鐵屑的收集。
■ Machine configuration chip conveyor chain plate, crumb car, easy to process iron collection.
■主軸滑臺采用滾柱式直線導軌支撐,伺服電機和滾珠絲杠直聯驅動,加工進給快速穩定。
■ Spindle slide support the use of roller linear guide, ball screw and servo motor direct drive, fast and stable machining feed.
■本機床采用全數字式數控系統,易于實現進給過程的分段控制,控制精度高,穩定性好,易于實現加工過程自動化。
■ The machine uses fully digital control system, easy to implement segmented feed process control, control of high precision, good stability, easy to implement process automation.
■主軸旋轉運動采用伺服主軸電機驅動,可實現無級變速。
■ Spindle rotation motion by servo spindle motor drive, can achieve stepless control.
TK515/TK520/TK525/TK530數控高速鏜床 規格參數
項目
|
TK515
|
TK520
|
TK525
|
TK530
|
鏜孔直徑范圍
|
Φ50mm~Φ150mm
|
Φ150mm~Φ200mm
|
Φ170mm~Φ250mm
|
Φ240mm~Φ300mm
|
主軸箱最大行程
|
300mm
|
500mm
|
900mm
|
1000mm
|
最大鏜孔深度
|
400mm
|
600mm
|
700mm
|
800mm
|
主軸連接方式
|
盤式連接
|
主軸中心線至導軌面距離
|
400mm
|
450mm
|
進給電機功率
|
2.2KW
|
3.5KW
|
4.2KW
|
5KW
|
進給電機扭矩
|
25Nm
|
44Nm
|
67.5Nm
|
80Nm
|
絲杠螺距
|
10mm
|
快速進給速度
|
15m/min
|
主軸轉速范圍
|
10-1500rpm
|
10-1200rpm
|
10-1000rpm
|
10-500rpm
|
進給速度范圍
|
0.01-10mm/r
|
主軸電機功率
|
11KW
|
11KW
|
15KW
|
15KW
|
主軸最大扭距
|
165Nm
|
165Nm
|
210Nm
|
210Nm
|
電氣控制系統
|
標配:凱恩帝,選配FAUNC、Siemens
|
液壓系統
|
集成式液壓站
|
冷卻排屑系統
|
刮板式排屑器
|
潤滑系統
|
集中定量自動潤滑
|
氣動系統
|
標準氣動控制系統
|
加工精度
|
IT7
|
夾具夾緊方式
|
氣動下壓夾具、自定心機構
|
機床防護
|
全封閉式防護
|
工作燈
|
節能型工作燈
|
機床噪聲
|
<75db
|
機床顏色
|
機座:深灰色、其他:白色
|
機床總功率
|
20KVA
|
25KVA
|
30KVA
|
35KVA
|
機床凈重
|
7000KG
|
8700KG
|
9700KG
|
15000KG
|
機床外形(長×寬×高)
|
2134×2160×2850mm
|
2134×2160×2850mm
|
備注
|
TK515、TK520可選擇雙軸結構
|
