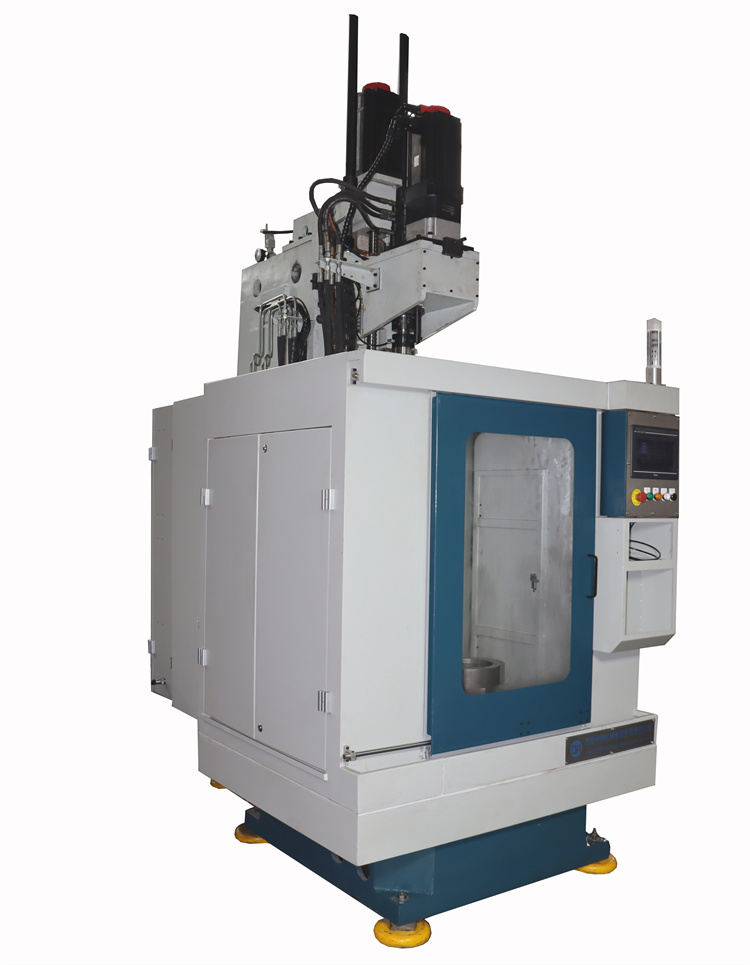

MB4215S系列經濟型伺服珩磨機

產品介紹：

■機床整體架構采用單立柱結構，結構緊湊，確保了機床的高剛性和高穩定性。

■采用分離式水箱設計，方便用戶清理冷卻液沉淀物質。

■主軸往復和旋轉運動采用高性能伺服電機控制，速度可實現同步控制，響應速度快。

■珩磨砂條漲縮裝置為液壓雙進給結構，采用液壓比例控制技術或手動調壓閥設定實現壓力控制。

■機床工作臺采用高精度雙工位液壓回轉工作臺，單軸雙工位模式，工作輔助時間為零。

■采用歐姆龍高性能運動控制器，運行穩定可靠。

■集成操作平臺，配置TFT彩色液晶觸控面板。專為珩磨加工定制的人機界面更具人性化。

■集中潤滑系統間歇供油，延長滑動部件使用壽命。

■ The overall structure of the machine tool adopts a single-column structure, and the structure is compact, which ensures the high rigidity and high stability of the machine tool.

■ Machine using separate water tank design, user-friendly coolant clean up sediment.

■ The reciprocating and rotating movement of the main shaft is controlled by a high-performance servo motor. The speed can be synchronously controlled and the response speed is fast.

■ Honing extension system is in double-feed design, Adopt hydraulic proportional control technology to realize pressure closed-loop control.

■ The machine table is duplex hydraulic rotary table, single axis duplex position mode, the work auxiliary time is zero.

■ The machine is controlled by OMRON high-performance motion controller, stable and reliable operation.

■ Integrated platform, with TFT liquid crystal color touch panel. The human-machine interface especially made for honing shows humanistic feature.

■ Intermittent oil lubrication system, to extend the service life of the sliding member.

■控制系統采用歐姆龍基于控制器自動化的高性能控制器NX1P2，控制器集成運動控制、邏輯編程功能，配置10“彩色TFT人機界面，具有物聯網功能。

■The control system adopts Omron's high-performance controller NX1P2 based on controller automation. The controller integrates motion control and logic programming functions. It is equipped with a 10" color TFT man-machine interface and has the function of Internet of Things.

■機床冷卻系統為循環冷卻，采用雙油箱設計，磁分式紙帶過濾機兩級過濾,并使用油冷機強制冷卻。

■ Machine tool cooling cycle cooling system, dual fuel tank design, magnetic tape filter two-stage filtration fraction, and an oil cooler forced cooling.

■機床夾具采用下壓油缸方式，也可訂制膠套包容夾具結構。

■Down press type oil cylinder, Optional rubber sleeve hold fixture .

■機床配置在線自動測量系統以保證珩磨工件尺寸一致性。

■ Machine configuration online automatic measuring system to ensure honing workpiece size consistency.

■主軸往復采用高性能伺服電機驅動，具有良好的動態響應性能。

■ The spindle reciprocating is driven by high-performance servo motor, which has good dynamic response performance.

■主軸旋轉采用高性能伺服電機驅動，與主軸實現同步控制。

■ The spindle rotation is driven by high-performance servo motor, which realizes synchronous control with the spindle reciprocating.

■EtherCAT總線技術

■ EtherCAT bus technology

MB4215S系列經濟型伺服珩磨機 規格參數
