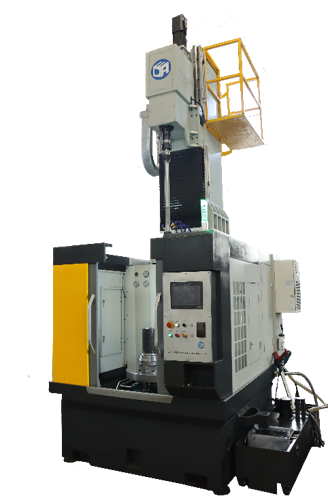

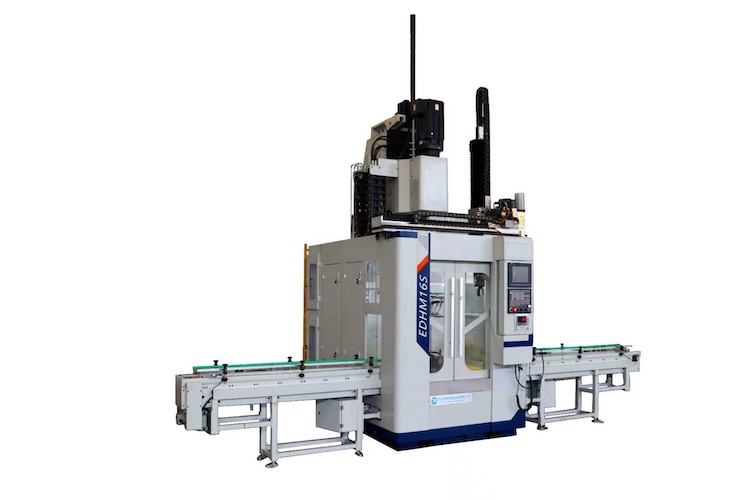

EDHM16S系列高性價比伺服珩磨機
產品介紹:
■機床整體架構采用單立柱結構,結構緊湊,確保了機床的高剛性和高穩定性。
■采用分離式水箱設計,方便用戶清理冷卻液沉淀物質。
■主軸往復和旋轉運動采用高性能伺服電機控制,速度可實現同步控制,響應速度快。
■珩磨砂條漲縮裝置為液壓雙進給結構,采用液壓比例控制技術或手動調壓閥設定實現壓力控制。
■機床工作臺采用高精度雙工位液壓回轉工作臺,單軸雙工位模式,工作輔助時間為零。
■采用歐姆龍高性能運動控制器,運行穩定可靠。
■集成操作平臺,配置TFT彩色液晶觸控面板。專為珩磨加工定制的人機界面更具人性化。
■集中潤滑系統間歇供油,延長滑動部件使用壽命。
■ The overall structure of the machine tool adopts a single-column structure, and the structure is compact, which ensures the high rigidity and high stability of the machine tool.
■ Machine using separate water tank design, user-friendly coolant clean up sediment.
■ The reciprocating and rotating movement of the main shaft is controlled by a high-performance servo motor. The speed can be synchronously controlled and the response speed is fast.
■ Honing extension system is in double-feed design, Adopt hydraulic proportional control technology to realize pressure closed-loop control.
■ The machine table is duplex hydraulic rotary table, single axis duplex position mode, the work auxiliary time is zero.
■ The machine is controlled by OMRON high-performance motion controller, stable and reliable operation.
■ Integrated platform, with TFT liquid crystal color touch panel. The human-machine interface especially made for honing shows humanistic feature.
■ Intermittent oil lubrication system, to extend the service life of the sliding member.
■控制系統采用歐姆龍基于控制器自動化的高性能控制器NX1P2,控制器集成運動控制、邏輯編程功能,配置10“彩色TFT人機界面,具有物聯網功能。
■The control system adopts Omron's high-performance controller NX1P2 based on controller automation. The controller integrates motion control and logic programming functions. It is equipped with a 10" color TFT man-machine interface and has the function of Internet of Things.

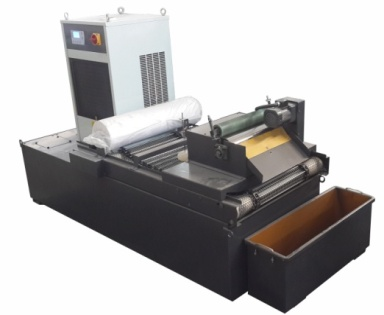

■機床冷卻系統為循環冷卻,采用雙油箱設計,磁分式紙帶過濾機兩級過濾,并使用油冷機強制冷卻。
■ Machine tool cooling cycle cooling system, dual fuel tank design, magnetic tape filter two-stage filtration fraction, and an oil cooler forced cooling.
■機床夾具采用下壓油缸方式,也可訂制膠套包容夾具結構。
■Down press type oil cylinder, Optional rubber sleeve hold fixture .
■機床配置東京計量在線自動測量系統以保證珩磨工件尺寸一致性。
■ Machine configuration online automatic measuring system from Tokyo Seimistu ACCRETECH to ensure honing workpiece size consistency.
■主軸往復采用高性能伺服電機驅動,具有良好的動態響應性能。
■ The spindle reciprocating is driven by high-performance servo motor, which has good dynamic response performance.
■主軸旋轉采用高性能伺服電機驅動,與主軸實現同步控制。
■ The spindle rotation is driven by high-performance servo motor, which realizes synchronous control with the spindle reciprocating.
■EtherCAT總線技術
■ EtherCAT bus technology
EDHM16S系列高性價比伺服珩磨機 規格參數
項目
|
EDHM16S
|
EDHM25S
|
珩孔直徑范圍
|
Φ30mm~Φ160mm
|
Φ100mm~Φ250mm
|
主軸最大往復行程
|
600mm
|
1200mm
|
最大珩孔深度
|
320mm
|
700mm
|
主軸旋轉方式
|
伺服電機,配減速機
|
主軸轉速范圍
|
10-200r/min
|
主軸往復形式
|
伺服電機
|
主軸往復速度
|
2.5-25m/min
|
珩磨頭進給方式
|
液壓比例控制定壓雙進給
|
粗精進給推桿最大行程量
|
30mm
|
工作臺驅動方式
|
液壓轉臺/*自動線
|
工作臺工位數
|
2
|
工作臺分度時間
|
4.5s
|
工作臺定位精度
|
±4“
|
工作臺尺寸
|
Φ650mm
|
|
加工精度
|
圓柱度:≤0.01mm ,粗糙度:Ra0.2 μm
|
電氣控制系統
|
歐姆龍NX1P2控制系統、EtherCAT總線技術
|
液壓系統
|
2.2KW變量泵,配風冷機
|
冷卻系統
|
分離水箱、磁輥紙帶兩級過濾恒溫冷卻系統、配油冷機
|
潤滑系統
|
集中定量自動潤滑
|
氣動系統
|
標準氣動控制系統,配空氣過濾裝置
|
測量系統
|
日本東京量?jī)xV2,在線測量
|
珩磨頭及珩磨連桿
|
雙進給珩磨頭,珩磨砂條漲縮壓力分級可控
|
珩磨夾具
|
下壓式油缸,可選配移動式膠套包容夾具
|
夾具夾緊方式
|
油缸壓緊,選配膠套夾緊
|
冷卻閥控制方式
|
氣動三通閥控制打開關閉
|
機床防護
|
半封閉式防護罩
|
工作燈
|
節能型機床工作燈
|
機床噪聲
|
<75db
|
機床顏色
|
機座:深灰色、其他:白色
|
機床總功率
|
30KVA
|
40KVA
|
機床凈重
|
約6000KG
|
約8000KG
|
機床外形(長×寬×高)
|
1850×2285×4100 mm
|
3120×3615×4810
|
